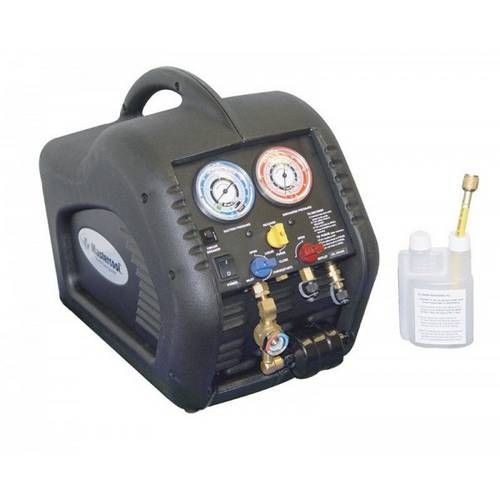

Recovery Station and recycling clim

Recovery Station for air conditioning, for all the refrigerants included r-410A.
Ideal for the industrial, commercial and residential.

This unit offers the same functions and characteristics as the station air conditioning REF: RUCLIM with the addition of a separation module-oil in combination with a filter drier that helps purify the refrigerant recovered and eventually its re-use.

Incorporate a piston compressor dry professional 1/2HP with a fan that is oversized.

This fan provides a cooling efficiency maximum allowing the compressor to work at its highest ability even in very hot climates.

The compressor is also protected by a pressure switch low pressure that cuts off the unit once the recovery is complete. The ball valves in stainless steel allow you to control the speed quickly and easily with a quarter turn.

The design of the enclosure, portable plastic reinforced to the recovery station Mastercool will meet all requirements for the recovery of refrigerants.

Features

• Reciprocating compressor lp high-performance
• Fan oversized
• Pressure switch low pressure
• Valve compressor head compatible with the liquid
• Pressure switch high pressure
• Plastic casing strengthened
• Compressor 1/2HP piston dry
• Dimensions: 432 x 254 x 305 mm
• Weight: 16kg
• Speed of recovery:
  • • Steam direct up to 12 kg/h
    • Liquid direct up to 71 kg/h
    • Push-pull (positive pressure) up to 326 kg/h/h

Certified quality

• 220 V - 50 Hz Certified to TUV/GS and E35-421
