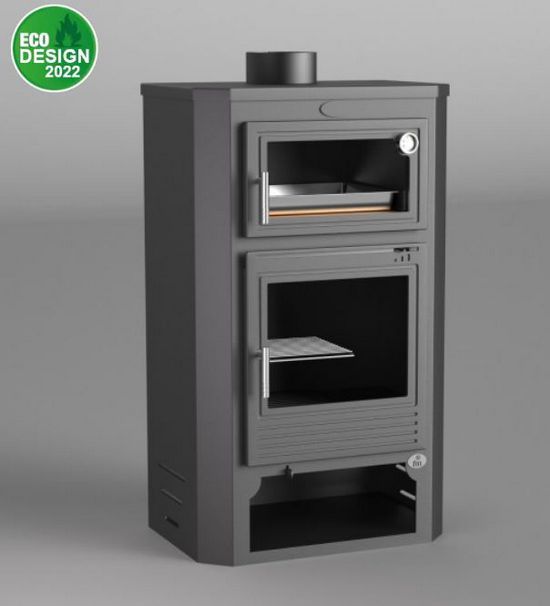

Wood stove with integrated oven Ecodesign Standard 2022

PA104M

New product

Wood stove with oven and integrated thermometer, Ecodesign Standard 2022 (double combustion) 10KW, Efficiency 78% equipped with clean glass system

More details

1 249,00 €

Add to wishlist

More info

This wood stove has an oven with an efficiency of 78%, it is equipped with the clean glass option to enjoy the flames and cooking.

Norm Ecodesign 2022

Combustion output: On top in Diameter 15

Tiweo offers payment in 4 installments without charge by credit card (no credit file or document to benefit from it)

Its yield is 78% thanks to its double combustion function (Ecodesign 2022) for a maximum wood consumption of 3.00 kg/h

Double combustion: This is a second combustion with two air intakes that you can adjust independently.

The second combustion burns the gases from the first combustion in order to improve the efficiency of the stove (more heat for less wood) and will limit toxic emissions into the air by limiting carbon monoxide emissions to 0.09% for this model


This stove is made of 4 mm thick steel and covered with an extremely heat-resistant black paint (up to 800°C).

The door is cast iron, it includes with a ceramic cord (which has replaced asbestos for years), and its glass will withstand up to 750 ° C.

One removable ashtray will allow you to empty the ashes easily and its clean glass system facilitates its maintenance.

The fireplace accommodates logs up to 50 cm.

  • TECHNICAL CHARACTERISTICS
    • Black color
    • Heat output: 10 KW
    • Yield: 78%
    • CO emissions: 0.28%
    • Consumption: 3.5 kg/h
    • Interior of the Vermiculite combustion chamber
    • Cast iron doors and grid
    • 4 mm steel equipment
    • Heat-resistant paint: 800ºC
    • Glass-ceramic: 750 ºC
    • Male upper smoke outlet: ø 150 mm
    • Primary air regulation (adjustable)
    • Secondary air regulation (adjustable)
    • Crystal-Clean System
    • Double combustion (Ecodesign Standard 2022)
    • Fuel: Firewood
    • Max size of logs: 50 cm
    • Firewood inlet mouth: 360 x 290 mm
    • Combustion chamber depth: 355 mm
    • Superior oven
    • Useful oven opening: 360 x 172 mm
    • Oven depth: 225 mm
    • Refractory brick oven bottom (for better heat)
    • built-in sheath thermometer
    • Soot-proof glass
    • Dimensions: 1028 x 561 x 460 mm (height/width/depth)
    • Heating volume: 225 m3
    • Weight: 93 kg.

Delivery by special conveyor directly from the manufacturing plant


2-year warranty.

Delivery is made to the door of your home.  The carrier will contact you either by email or phone to arrange an appointment with you for delivery.

Tiweo is committed to a delivery in accordance with your expectations, Check your delivery thoroughly !

The customer undertakes to check the contents of the package(s) in the presence of the carrier, to sign the delivery receipt presented by the delivery person.

In the event of a problem, the customer will carry any reservations corresponding to the observations noted on the registration sheet and will have the delivery person co-sign and keep a copy of the document (important).

In case of transport damage, the customer must refuse the damaged product to the delivery person and indicate "refusal for damage" and detail with precision the type of damage found
